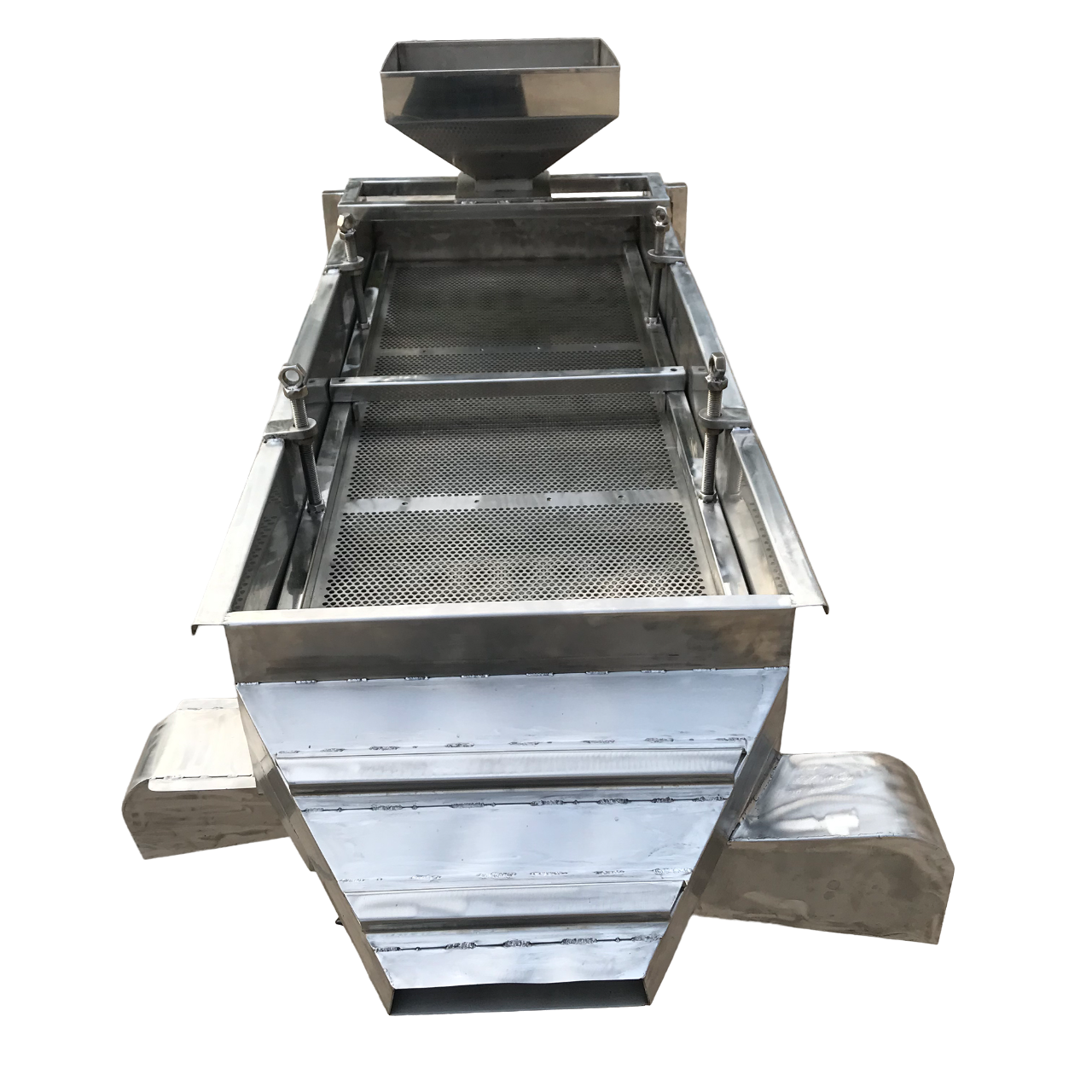

Coffee Bean Vibratory Screener Machine
We can offer a range of vibratory screeners with different models and specifications to suit various screening needs. These machines are designed to enhance productivity and ensure the quality of coffee beans.
Coffee Bean Specific Particle Size Grading Equipment
Screen Mesh Specifications: The mesh size conforms to international standard sieve sizes.
Stainless Steel Laser Cutting Technology: Utilizing advanced laser cutting for the screen holes.
Stainless Steel Construction: The entire machine is made of stainless steel with meticulous craftsmanship.
Double Layer Sieve: Equipped with two sieve layers, allowing for the selection of any two specifications from 12# to 18#.
High Processing Capacity: Capable of processing up to 600 kilograms per hour.
Overcoming Traditional Issues: Addresses the problem of bean jamming common in traditional oscillating arm graders.
Effective Grading: Ideal for small-scale coffee farmers, offering excellent grading results.
|
Type: |
Linear |
|
Function: |
High Frequency Vibrating Screen, Filter/Classification/Remove Impurity. |
|
Transmission On Structure |
Vibrating Screen |
|
Usage |
Food Industry |
|
Works |
Vibrating Motors |
|
Running Track |
Linear Vibrating Screen |
|
Noise |
Below 75dB |
|
Voltage |
220V |
|
Machine Dimension |
1900*740*1520mm |
|
Mesh Size |
12-18 Mesh |
|
Certificate |
CE Certificate |
|
Material |
Stainless steel screen 12# and 16# (Customized) |
|
Capacity |
500Kg/H |
|
Advantage |
High Precision |
|
Equipment Weight |
110kg |
|
Package Gross Weight |
148kg |
|
Production Capacity |
200 Set/Sets Per Month |
|
Warranty |
1 years |
|
Transport Package |
Standard Export Wooden Box |
A Linear Vibrating Screen is a type of screening equipment. It uses two vibration motors as its vibration source, causing the materials to be thrown up on the screen surface and move forward in a straight line simultaneously. The material uniformly enters the feed port of the linear vibrating screen, then passes through the multi-layer rectangular screen to produce different sizes of material, and finally, they are discharged from their respective outlets.
Main advantages:
- Energy-efficient operation:The machine operates with lower energy consumption, reducing operating costs and environmental impact.
- Efficient material separation: The high-quality of the linear vibrating screen ensures efficient and accurate screening and separation of materials.
- Easy to maintain: The easy maintenance design of the screen reduces the need for specialized expertise and minimizes downtime for cleaning and repairs.
- Durable construction: The durable construction of the linear vibrating screen ensures long-lasting performance and minimal downtime for maintenance and repairs.
- Customizable deck configurations: The number (1-7) and configuration of decks can be customized to suit different applications and material requirements.
- Vibration motor: We use 2 sets OLI-WOLONG vibration motor, which sells well in the domestic market with high quality.The vibration force can be adjusted by adjusting the masses.
- Screen mesh: Stainless steel wire woven mesh structure, with good corrosion resistance and wear resistance, widely used in mineral, food and chemical industries.
Applications for Segregator Sieve:
The Segregator Range offers precise screening capabilities for handling substantial quantities of material, providing options for two or three separations. It is versatile and can be utilized across various industries, including food, chemical, and pharmaceutical sectors. Additionally, a specialized version is available for capsule sorting.
